Lundberg 6250 is fast, strong and agile tool carrier for public works.

Lundberg 6250 is the ideal machine for all kinds of work. It is fast, strong and agile, and it can handle the work of both big and small machines in all types of terrain.

Download technical brochure >>

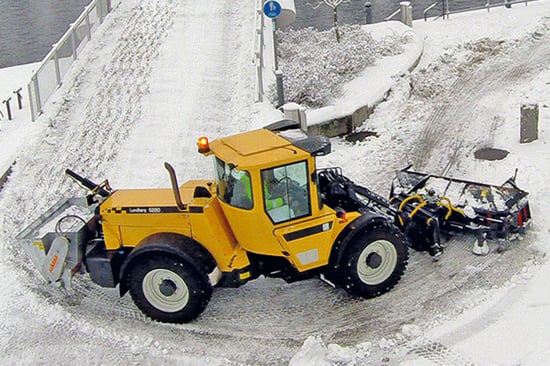

Snow ploughing and sanding

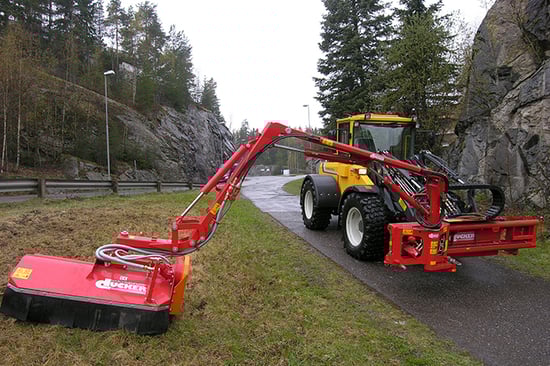

Lawn mowing and mulching

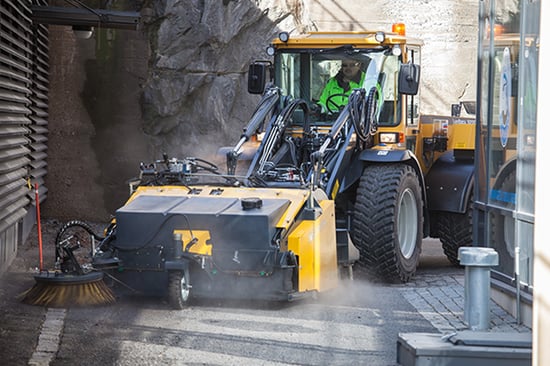

Sweeping and collecting

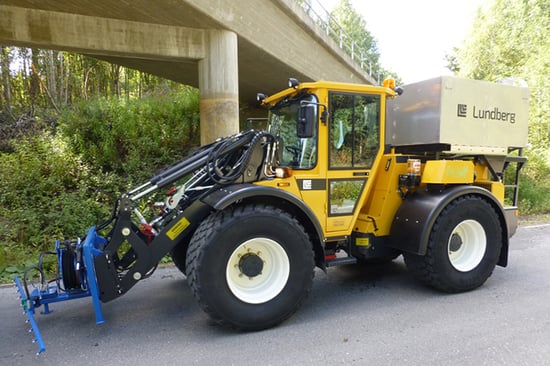

Pressure washing and cleaning

Comfortable and
Easy to operate

All stages of the work can be accomplished using one single machine. The changing of the tools is done quickly, and the machine travels rapidly and safely from one work site to the next. A very quiet cabin gives it extra operating comfort.

The range of products comprises five machine models and a comprehensive range of accessories.

Multipurpose Lundberg – fast, agile and powerful

Machines that are suitable for the maintenance of properties and environmental services throughout the year. These machines, which can withstand heavy loading, are very reliable and have well-proven components.

Technical information: Lundberg 6250

Engine
- Deutz TCD 3,6 L4 f, Stage 5

  Output (DIN) 100 kW (136 hp)/2300 rpm

  Torque 500 Nm/1600 rpm
High speed transmission
- Hydrostatic, variable displacement pump and motor.

  Mechanical transport gear with electric control.

  Gears forward/backward 4/4

  Max. tractive force 53,1 kN

  Speed 0 - 50 km/h

Hydraulic system

Load-sensing operating hydraulics with electric pilot control.
Pump with variable displacement, double-acting hydraulic
motor functions with individually adjustable flow.
Maximum flow of hydraulic oil	290 l/min (2300 rpm)
Operating pressure	22 Mpa

Frame
- Articulated steering and oscillating frame.

  Max. steering angle ± 43 °

  Max. oscillation angle ± 17 °
Wheels
- As standard 420/65R24

  As option 460/65R24
Brakes
- Hydraulic power-assisted brakes in oil bath on both front and
  rear axles. Electro-hydraulic parking brake on the front axle.
Electric system
- Voltage 12 V

  Alternator 200 A

Measurements and weight

Height	2290-2405 mm
Width (between the outer flanks of the tyres)	1920 mm
Turning radius (inside/outside wheels)	2185 mm/4345 mm
Capacity of the fuel tank	100 l
Capacity of the AdBlue tank	10 l
Weight without work attachments	5500 - 6500 kg

Loader
- Lifting height 3580 mm

General information

ROPS and FOPS tested cabin
Noise level (2000/14/EC)
- in the cabin LpA	69 dBA
- outside the cabin LwA	101 dBA

We reserve the right to make changes without prior notice.
The machines in the pictures may have optional equipment.
