Lännen 8800M

Challenging terrain and multiple tasks? Lännen 8800M is the most powerful and versatile backhoe loader on the market. A perfect choice for tough and demanding tasks.
Lännen 8800M

Lännen 8800M is the go-to-choice for works requiring an uncompromising level of all-terrain mobility, power and reach, as well as the capability to use a wide range of robust and powerful attachments.

The multipurpose Lännen 8800M offers a 30% increase in digging power, as well as in loading, lifting, and pulling forces compared to the 8600M. It is equipped with the bigger wheels, a PowerShift transmission, and a larger and more powerful loader than the base model.

Lännen 8800M is the smartest and the most versatile choice for the demanding operations in construction and maintenance of infrastructure, railways, tramways, and electricity distribution and communications networks.

Lännen 8800M
Lännen 8000

DESIGNED TO BE VERSATILE
— BUILT TO LAST


We design machines for your ease-of-use and with effectiveness in mind. One multipurpose Lännen is capable of tasks which traditionally have required several machine types to accomplish.

Lännen's solid, heavy-duty structure, powerful and versatile hydraulic system make it possible to use a wide range of robust and powerful attachments on both the loader and backhoe. In addition, the backhoe unit is detachable and it can be replaced with a rear tool carrier equipment and several work tools.

SMART PRODUCTIVITY

Settings for tasks, attachments or operators can be saved via display for quick recall. Multitasking with work tools attached to both the loader and backhoe, or carrying out successive tasks with a single set of work tools simply by changing the driving direction multiplies the versatility and productivity of Lännen to a completely unbeatable level.

MAXIMUM COMFORT WITH MINIMUM EMISSIONS

In consideration of the environment

Reducing the environmental impact was one of our key design goals of the model range renewal. The M model engines meet the requirements of the Stage V emission standard and also enable the use of HVO biodiesel made from renewable sources.

Engine and hydraulic temperature control was improved with a more efficient fan and optimized air circulation. The drive hydraulics was also redesigned, and now the diesel engine speed remains lower at road speeds. This makes moving the machine more economical and environmentally friendly.

For the operator

In the M model, the working environment of the operator is even more comfortable and functional:

  • With a 10" touchscreen, navigation is logical and adjustments run smoothly
  • The high capacity cab heater and climate control ensures a pleasant working temperature all year round
  • The windshield stays cleaner thanks to the extended front mudguards
  • The rear window, which can be opened in different positions, received a much-desired new wiper
  • Special attention was paid to safety in the renovation of the cabin stairs
  • Tool boxes are available conveniently located in connection with the front fenders

Ease of maintenance

The Agco 49 LFTN Stage V engines are equipped with hydraulic valve lifters that reduce the need for maintenance. The machines are also equipped with maintenance-free batteries.

Exhaust aftertreatment system has been taken out of the engine compartment to provide better access to service points. A quick connector added to the hydraulic oil tank facilitates oil change, and the filter is also easier to change.

Heavy Duty underbody protection plating is also standard, which guarantees better protection than before. Its new division and hinged construction make it easier to access the service points below the machine.

Lännen CAD

NEW M-MODELS:

TECHNICAL NOVELTIES WITH STYLE

The goal of the model range renewal was to refine driving and operating comfort, improve productivity and versatility, and reduce environmental impact. The multipurpose Lännen is designed with the driver, year-round productivity and the environment in mind. Ownership of the Lännen can be made more carefree with a maintenance contract and the
possibility of an extended warranty.

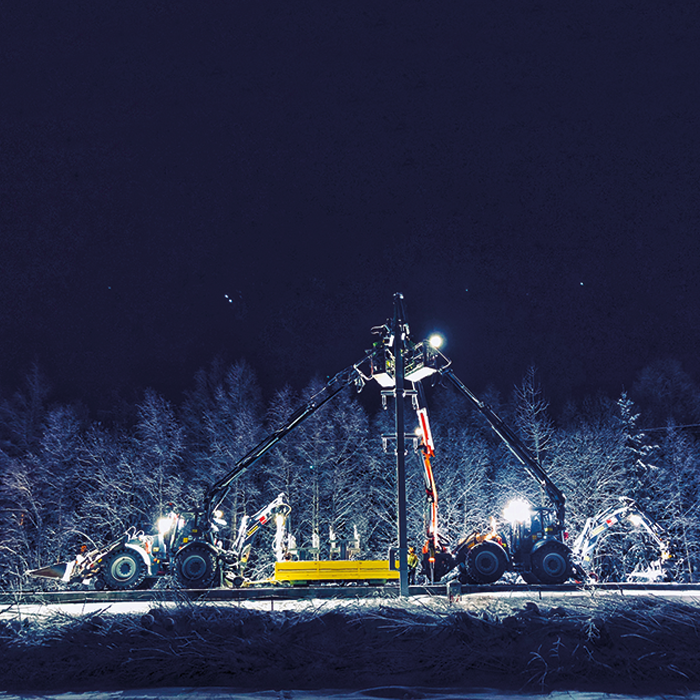

700x700_Lännen_line_rail_norway

KEEPING YOU ON TRACK TO EFFICIENCY


The multipurpose Lännen provides smart productivity through first-class versatility and mobility.

With Lännen, you can cover a wide variety of applications throughout the year. It is smooth and safe to drive both on the roughest terrain and on the highway, as well as in densely populated areas and confined spaces.

The excellent overall economy of Lännen is a part of our high contribution to a sustainable development. With multipurpose Lännen, you can achieve more with less.

700x700_Lännen_line_rail_norway

Technical information: Lännen 8800M

  • Engine

    • Agco Power 49, 4-cylinder, turbocharged and intercooled diesel engine, Stage V
      Displacement 4,9 l
      Output 127 (173) kW (hp) / 1900 rpm
      Torque (max.) 750 Nm / 1500 rpm
      Torque (/ 1000 rpm) 720 Nm
      Capacity of the fuel tank 150 l
      Capacity of the AdBlue tank 40 l

  • Electric appliances

    • Alternator with a multi-groove flat belt and automatic tightening 24V / 100 Ah
      Starter 4,5 kW
      Batteries (under the cabin, easy to maintain) 2 x 170 Ah
      Electric engine heater 1100 W

  • Axles

    • ZF axles, automatic friction locks in the front and rear axles. A 100 % rear differential lock, which can be switched on even while the drive is on, is available as an option.
      Frame oscillation ± 400 mm. Automatic Oscillation Control System AOC

  • Transmission and gearbox

    • Hydrostatic transmission: 4-wheel drive, ZF 2-speed full Powershift transmission (can be shifted in motion), electrically controlled. Both forward and rearward facing steer and drive controls as standard.
      Drive speed forward/reverse
      1. gear 0…10 km/h
      2. gear 0…46 km/h

  • Wheels

    • Front and rear tyres 620/60x34T459 Nokian Ground Kare.
      Rim DW20-34, reinforced by flanging, valve guards

  • Brakes

    • Oil pressure operated brakes in oil bath on the front and rear
      Parking brake Range gearbox operates as parking brake,  electric control.

  • Steering

    • Hydrostatic LS Orbitrol steering
      Steering angle of the articulated joint ± 42°
      Turning radius from the centre of the tyre 5,40 m
      Steering is also possible via the left control lever

  • Hydraulics

    • Danfoss valves, verstile and precise control systems
      Variable displacement axial piston pump, max. flow 309 l/min
      Electric output control available as an option
      Max operating pressure (normal/turbo hydraulics) 225 bar / 245 bar
      Filling capacity of the hydraulic system 240 l

  • Cabin

    • ROPS and FOPS tested
      Noise level LpA / LWA   67,5 dBA / 101,5 dBA


      The working environment of the operator is spacious and low-noise with excellent all-round visibility. The ergonomic, operator-friendly cabin is comfortable, and it enables the operator to control the machine easily and safely. Its high capacity heater and climate control ensures a pleasant working temperature throughout the whole year.

      Steering column, with two articulated joints and height adjustment, provides a pleasant driving position, and can, as required, be turned out of the way to the front. The seat swivels freely, and its sturdy armrests are easy to adjust for operators of different sizes and varying operating habits.

      The control panel, which is located beside the armrest, includes the switches for the most important functions of the machine. The cabin can be hydraulically tipped in two stages with a manually operated pump for easy service access.

  • Front loader

    • Mechanical self-leveling, position indicator for the bucket.
      Operating pressure (normal/turbo hydraulics)  225 bar / 245 bar
      Lifting force at the lowest position (normal/turbo hydraulics) 68,7 kN / 73,6 kN
      Lifting force at the highest position (normal/turbo hydraulics) 52,0 kN / 54,9 kN
      Loading height (bottom of the level bucket) 3790 mm
      Recommended bucket volume (depending on the density of the material being loaded) SAE 1900 l

  • Backhoe unit

    • Knuckle boom, straight backhoe available as an option
      Operating pressure (normal/turbo hydraulics)  225 bar / 245 bar
      Digging reach 6830 mm
      Digging depth 4970 mm
      Loading height (bottom of the level bucket) 4080 mm
      Swing angle of the backhoe 180 + 54°
      Lifting force at max. reach (normal/turbo hydraulics) 20,6 kN / 23,5 kN
      Slewing torque 42,4 kN
      Recommended bucket volume SAE 500 l

  • Main dimensions

    • Lenght/width 9520 mm / 2600 mm
      Cabin height/backhoe height 3200 mm / 4470 mm
      Ground clearance 510 mm
      Weight (without buckets and depending on the configuration) ca. 13 000 kg
icon-download

Download brochure: M-Models ready for heavy duty
